　挤压成型散热器一般为高功率散热元件和散热系统，文轩热能根据现有成熟的铝挤型型材散热器技术，可以提供可靠的自然对流环境解决方案。通过模具实现铝挤压成型，可实现复杂的散热齿片结构。这些复杂的散热齿片更大提高了散热表面面积，同时降低了铝块加工的成本和时间。
为什么要使用文轩热能挤压散热器？
（1）比冲压成型的散热片更高效；（2）比机械加工更节约成本；（3）有多种标准形状和尺寸可供选择；（4）轻松的定制实现比铜更轻，优势明显；（5）MAX CLIP扣件系统无需安装硬件和工具。

查找模具（输入参数查找你想要的产品）

Design Parameters

The basic parameter of extrusion is as below:The basic parameter of extrusion is as below

机台吨位对角线尺寸倍数（齿高/齿间距）机台吨位对角线尺寸倍数（齿高/齿间距）
600T<120mm242750T<250mm21
880T<130mm243000T<320mm20
1000T<150mm223600T<350mm20
1500T<180mm224000T<400mm20
1800T<200mm216500T<540mm19
2500T<230mm218000T<700mm16

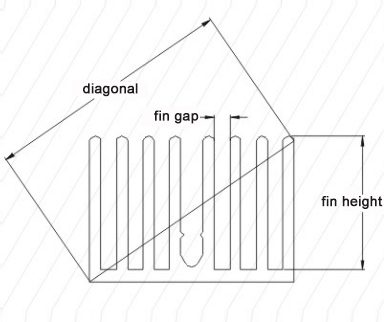

Note: Aspect ratio = fin height / fin gap

Production workshop of aluminum extruded heat sinks
Aluminum extrusion machine
Stamping machine for aluminum extruded heat sinks

Tooth features

Fin profile #1: The fin tip has the same thickness as the fin base. The aspect ratio is smaller than 10 and this structure is suitable for cooling by natural convection.

Fin profile #2: Smaller fin tip with a larger fin base and it forms a taper. High aspect ratio which is suitable for forced air cooling products. It is more lightweight under the premise of no performance reduction.

Fin profile #3: Smaller fin tip with a larger fin base and it forms a taper. Knurls are added to the fin surface. Both fin profiles #1 & #2 are suitable for this type of design to increase the surface area. The size of the knurls is inversely proportional to the aspect ratio.
